iMCU W7100A is the one-chip solution which integrates an 8051 compatible micro-controller, 64KB SRAM and hardwired TCP/IP core for high performance and easy development. The TCP/IP core is a market-proven hardwired TCP/IP stack with an integrated Ethernet MAC & PHY. The Hardwired TCP/IP stack supports the TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE which has been used in various applications for years.

Key Features

Industrial standard 8051

Pipelined architecture 4~5 times faster than other 8051

2 data pointers for fast memory block processing

64KByte Flash, 64Kbyte SRAM, 2Kbyte Boot ROM, 255Byte Data Flash

External 11.0592MHz operation frequency for internal PLL logic

Interrupt Controller : 2 priority levels / 4 external interrupt sources / 1 watchdog interrupt

Four 8 bit I/O ports

Three timers/counters

Full Duplex UART

Programmable Watchdog Timer

Hardwired TCP/IP protocols

TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE

Un-attackable hardware network engine for preventing network attacks such as flooding, spoofing, injection

8 Independent hardware socket

Internal 32Kbytes memory for TCP/IP packet processing

10BaseT / 100Base TX Ethernet PHY Embedded

Support Auto-Negotiation (Full & Half Duplex, 10 & 100 Based)

Support Auto-MDIX

3V Operation with 5V I/O signal tolerance

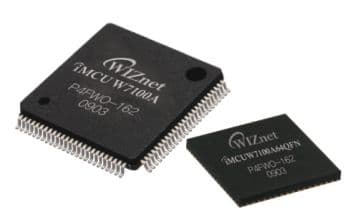

100LQFP (13x13mm), 64QFN (10x10mm) Lead Free Package
